ConnectSmart^TMVideo Interface

The ConnectSmart family offers a full range of high-speed video/audio/data connectivity IC solutions that are designed for linking CPUs/GPUs and various endpoints for applications including PC docks, dongles and protocol converters and VR head mounted displays. To find out more about the products below, or any of Synaptics' broad range of solutions, please reach out to your Synaptics rep ordrop us an email.

Integrated USB-C products for Video and Data Accessories

Ideal for USB Type-C applications
2/4-lanes of video and 2-lanes of USB data from host
Multi-stream video, audio and data
Robust device security and content protection
Ultra-low power

Product	Description	Diagram
VMM8210	USB-C receiver port with integrated De-Mux 1 HDMI2.1 transmitter port 1 DP 1.4/DP++ transmitter port 1 USB3.1 re-timer发射机/接收机端口 DSC1.2a decoded / Pass-through outputs HDCP2.3, Secure FW update, Secure boot 8K 60Hz or dual 4K 60Hz outputs
VMM8100	USB-C receiver port with integrated De-Mux 1 HDMI2.1 transmitter port 1 USB3.1 re-timer发射机/接收机端口 DSC1.2a decoded / Pass-through output HDCP2.3, Secure FW update, Secure boot 8K 60Hz or 4K 120Hz output
VMM8110	USB-C receiver port with integrated De-Mux 1 DP 1.4/DP++ transmitter port 1 USB3.1 re-timer发射机/接收机端口 DSC1.2a decoded / Pass-through output HDCP2.3, Secure FW update, Secure boot 8K 60Hz or 4K 120Hz output

USB-C Protocol Converters for Video Adapters / Motherboard

Ideal for USB Type-C applications
2/4-lanes of video from host
Single or Multi-stream videoRobust device security and content protection
Ultra-low power

Product	Description	Diagram
VMM7100	USB-C / DP HBR3 receiver port 1 HDMI2.1 transmitter port DSC1.2a decoded / Pass-through output HDCP2.3, Secure FW update, Secure boot USB-PD controller and Billboard 8K 60Hz or 4K 120/144Hz output
VMM6100	USB-C / DP HBR3 receiver port 1 HDMI2.1 transmitter port DSC1.2a decoded / Pass-through output HDCP2.3, Secure FW update, Secure boot 8K 60Hz or 4K 120/144Hz output
VMM6210	USB-C / DP HBR3 receiver port 1 HDMI2.1 transmitter port 1 DP 1.4/DP++ transmitter port DSC1.2a decoded / Pass-through outputs HDCP2.3, Secure FW update, Secure boot 8K 60Hz or dual 4K 60Hz outputs

3-Port Multi-Stream Hub for Docking Stations

Supports multiple video streams from host
Ideal for DP or USB-C connector applications
2 and 4-lanes of video over USB-C from host
DisplayPort or HDMI 2.0 outputs

Product	Description	Diagram
VMM5330	DP HBR3 receiver port 3 DP 1.4/DP++ transmitter port DSC decoder per output port FEC on input and output ports Synaptics patented dual 4K 60Hz outputs HDCP 2.3 supported on all input and output ports Firmware upgradeable over I2C or AUX
VMM5320	DP HBR3 receiver port 1 HDMI 2.0b transmitter port 2 DP 1.4/DP++ transmitter ports DSC decoder per output port FEC on input and output ports Synaptics patented dual 4K 60Hz outputs HDCP 2.3 supported on all input and output ports Firmware upgradeable over I2C or AUX
VMM5310	DP HBR3 receiver port 2 HDMI 2.0b transmitter port 1 DP 1.4/DP++ transmitter ports DSC decoder per output port FEC on input and output ports Synaptics patented dual 4K 60Hz outputs HDCP 2.3 supported on all input and output ports Firmware upgradeable over I2C or AUX

2-Port Multi-Stream Hub for Dongles/Hubs

Supports multiple video streams from host
Ideal for DP or USB-C connector applications
2 and 4-lanes of video over USB-C from host
DisplayPort or HDMI 2.0 outputs

Product	Description	Diagram
VMM5220	DP HBR3 receiver port 2 DP 1.4/DP++ transmitter ports DSC decoder per output port FEC on input and output ports Synaptics patented dual 4K 60Hz outputs HDCP2.3 supported on all input and output ports Firmware upgradeable over I2C or AUX
VMM5210	DP HBR3 receiver port 1 HDMI 2.0b transmitter port 1 DP 1.4/DP++ transmitter port DSC decoder per output port FEC on input and output ports Synaptics patented dual 4K 60Hz outputs HDCP2.3 supported on all input and output ports Firmware upgradeable over I2C or AUX
VMM5200	DP HBR3 receiver port 2 HDMI 2.0b transmitter port DSC decoder per output port FEC on input and output ports Synaptics patented dual 4K 60Hz outputs HDCP2.3 supported on all input and output ports Firmware upgradeable over I2C or AUX

Video Interface Bridge for VR Headsets

Full HBR3 VESA DP1.4 receiver port
2 and 4-lanes of video over USB-C from host
Dual MIPI transmitter ports configured as D-PHY or C-PHY
Capable to drive single, dual or 4 MIPI displays

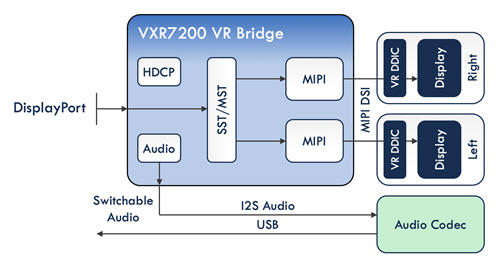

The Synaptics’ Virtual Reality (VR) Bridge solution provides ultimate user experience for head-mounted displays (HMDs). It combines unmatched dual 2K image quality with DisplayPort 1.4 connectivity to deliver the necessary high-performance visual support for next generation augmented-, mixed-, and virtual-reality HMDs used for applications including gaming, movies, commercial and medical.
