THE POWER
OF TOUCH

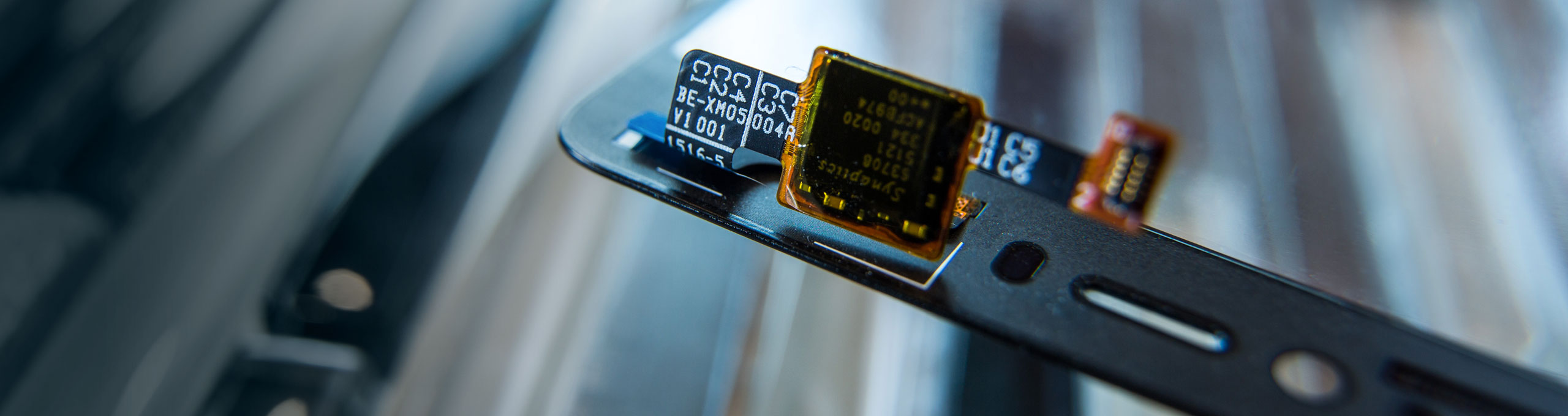

ClearPad®Touch Controllers

What’s more natural than the human touch? ClearPad solutions from Synaptics bring that human touch to a new dimension by dramatically enhancing users' interaction with smartphones, tablets, wearables, autos and other devices. The extensive ClearPad line is a family of capacitive-touch controllers tailored for specific applications no matter the screen size. The controllers' minimal size, low power requirements and array of other key innovations enable manufacturers to differentiate their products significantly.

Features & Benefits

  • FaceDetect™
    FaceDetect distinguishes between a user’s finger and face, protecting against unintended gestures on a smartphone’s display.
  • Active Pen
    ClearPad supports active stylus with tilt for precise writing and drawing.
  • Fast Report Rate
    More responsive for the fastest gaming experience.
  • On-Cell OLED Performance
    Support for the latest ultra-thin touch display technology.
  • Noise Immunity
    Able to detect a touch even in the presence of extreme display noise.
  • Environmental Noise Reduction
    Robust performance when facing noisy chargers and dirty power sources.
  • Ultra Low Power
    Best in class for standby and active power modes.
  • Ultra Compact
    A small die size with few external components.
  • Glove
    ClearPad controllers' sensitivity allows touch gestures on a display even when users are wearing gloves.
  • Moisture Functionality
    Damp or oily fingers are no match for ClearPad's ability to function even in moist conditions.
  • SideTouch™
    SideTouch gives smartphone users an entirely new way to scroll and take photos -- through controls built into the side of the devices.
  • Wake-up Gestures
    Customized gestures to unlock their phones, launch apps, and more.
  • Passive Pen
    Non-battery-powered styluses also are supported by ClearPad, enabling the use of less-expensive alternatives.
  • Certified for Automotive
    ClearPad touch controllers are certified for demanding automotive applications that uses larger displays.
  • Ideal for Wearables
    ClearPad touch controllers make wearables compact, feature-rich and power-efficient.

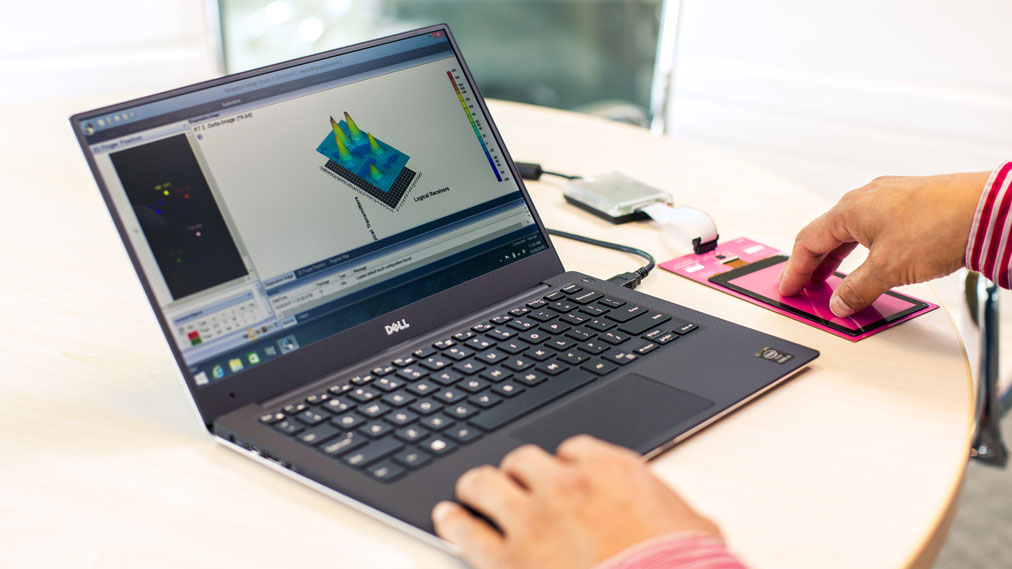

Synaptics Design Studio streamlines the touchscreen design process, while reducing total design cost and accelerating the time to market. The tool suite assists designers in creating optimal products that are tightly aligned with target design and performance specifications. Design Studio works seamlessly with multiple display configurations and stack-ups, including discrete sensor, on-glass-sensor, on-cell, and in-cell solutions.

Design Studio includes tuning and configuration wizards, production test tools, and diagnostics tools that configure and test chips and modules built using Synaptics capacitive sensing technology. Choice of materials, thickness of glass, and system architecture impact touch performance. Synaptics Design Studio allows designers to set firmware parameters (such as baseline capacitance and operating frequency) to optimize the touch performance of a particular touchscreen design. The result is excellent responsiveness, sensitivity and finger-tracking. The tools also allow the designer to enable and configure advanced features such as side touch, moisture tolerance, and gesture recognition.

For integrated touch and display controllers, Design Studio also allows designers to adjust color settings -- gamma, warmth, white point, color targets, backlight intensity -- to optimize and tailor the display performance of a particular design. The result: Vibrant images, excellent color and low power consumption.
